Whitey's White Caddy 4

Post by Whitey » Thu Oct 12, 2017 1:45 am

Well peeps, think it's time for me to start my build thread!

My initial love for the caddy first came about a few years ago when I saw a brand new Golf drive towards me, as it got closer I realised 'that's not a Golf!' - indeed it was a nice new Caddy 3 / Facelift. I needed one... At the time I was still happy with my car (a Leon Curpa R which I have now owned for 12 years). I still love this car but thought time for a change and began Caddy (window) shopping. In all honesty pretty shocked on the value of these things!

Over 6 months of searching I missed out on 3 particular Caddy's that I had my mind set on, literally the day before I was able to view, they had gone and each encounter was actually quite gutting (tiny violins!)

At the point of nearly giving up a 2016 Caddy 4 popped up at an absolute bargain, even better locally. Within a couple of hours she was mine!

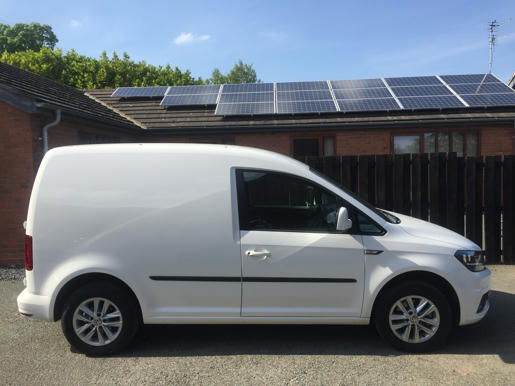

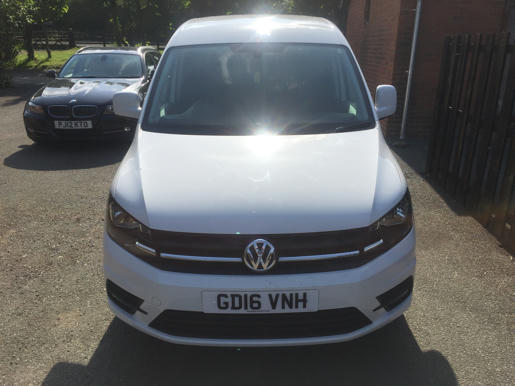

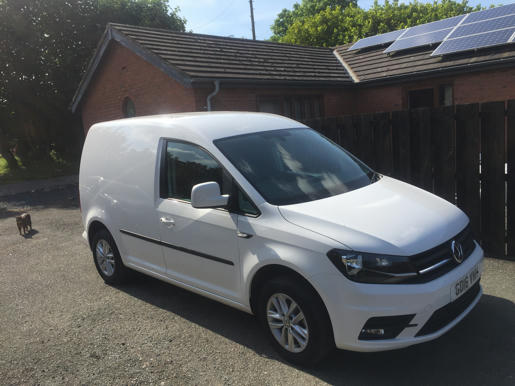

Day I bought her...
[URL=http://www.mediafire.com/view/w3yszwub3 ... .36.54.jpg]Image[/URL

User avatar
Whitey
Twin Turbo poster
Posts: 461
Joined: Wed May 31, 2017 9:43 am
Engine size/power: 2.0 CR TDI (108bhp)
Location: North West
Contact:

Re: Whitey's White Caddy 4

Post by Whitey » Thu Oct 12, 2017 2:01 am

The Caddy is a 2.0 TDI Highline Bluemotion 16 plate with 8800 on the clock when purchased. The vehicle is recorded as Cat D due to flood damaged engine, but not a concern for me as I bought it from an Evo specialist who rebuilt the engine. The work was officially inspected and signed off too so felt safe making the purchase.

User avatar
Whitey
Twin Turbo poster
Posts: 461
Joined: Wed May 31, 2017 9:43 am
Engine size/power: 2.0 CR TDI (108bhp)
Location: North West
Contact:

Re: Whitey's White Caddy 4

Post by Whitey » Thu Oct 12, 2017 2:15 am

After much perusing of the forum as a guest, being a new Caddy owner I thought I'd officially sign up. Got a bit giddy and bought many incorrect parts due to impatience so a word of advice, if you have just joined, it's well worth being patient until you are granted full access. Don't make the mistakes I did... (saying that I'm still making them ha!)

Mod Plans
* Rear Seat Conversion
* Coilovers
* Large alloys
* Colour Code exterior parts (bump strips / number plate surround)
* Caddy life power folding mirrors (with puddle lights)
* Heated leather seat upgrade with touran bases
* touran centre console
* Head unit upgrade / Reverse camera
* touran carpets
* soundproof / insu / carpet rear
* mfsw
* footwell leds - front / rear

Many tried and tested mods here, nothing too out of the ordinary. A big thanks to the forum members who have supplied the help, guides and knowledge :)

User avatar
Whitey
Twin Turbo poster
Posts: 461
Joined: Wed May 31, 2017 9:43 am
Engine size/power: 2.0 CR TDI (108bhp)
Location: North West
Contact:

Re: Whitey's White Caddy 4

Post by Whitey » Thu Oct 12, 2017 2:31 am

Got in touch with a VW breaker not too far away from me in Bolton, they had a couple of Tourans there so went to check them out. A good few hours there, I came away with black front and rear carpet including storage boxes and frames, centre console and armrest, middle row rear seats, seat belts, front seat bases and promised the mounting brackets for the rear seats at a later date. Grabbed all this for £220 which I'd say is a bargain. Down sides were there was absolutely no glass left in the Touran meaning the carpets were very wet and smelt like Hodor's ass (game of thrones people will get this.. maybe ha!). The wetness and smell was sorted by a couple of goes with the wet vac and a bottle of febreeze - came up as good as new! Other problem was waiting for them to remove the rear seat fixings. Took about 2 weeks of pestering (twice a day on the phone) to be promised it will be ready tomorrow! Finally got the part... actually nearly the whole back end of a Touran - they just cut it from arch to arch - nearly didn't fit in the leon!

User avatar
Whitey
Twin Turbo poster
Posts: 461
Joined: Wed May 31, 2017 9:43 am
Engine size/power: 2.0 CR TDI (108bhp)
Location: North West
Contact:

Re: Whitey's White Caddy 4

Post by Whitey » Thu Oct 12, 2017 2:41 am

In the meantime I bought some Audi S3 Leather Seats. (accidentally deleted all my pics of the front seats from my phone but will upload some others asap). Seem to be a waste not to install the rear Audi seats, so going to workout some sort of frame to accept them on the Touran rear locators - a mod for another day!

Stripped out the plylinig and removed the rear footwell cover and support bar ready for the rear seat install

User avatar
Whitey
Twin Turbo poster
Posts: 461
Joined: Wed May 31, 2017 9:43 am
Engine size/power: 2.0 CR TDI (108bhp)
Location: North West
Contact:

Re: Whitey's White Caddy 4

Post by Whitey » Thu Oct 12, 2017 2:49 am

Mounting bracket and front locator pre reomoval from Touran section

Bracket welding...

Seat fitting...

User avatar
Whitey
Twin Turbo poster
Posts: 461
Joined: Wed May 31, 2017 9:43 am
Engine size/power: 2.0 CR TDI (108bhp)
Location: North West
Contact:

Re: Whitey's White Caddy 4

Post by Whitey » Thu Oct 12, 2017 2:57 am

Running the seatbelt fixing plates into the pillars. They were actually set to the lower hole in the last picture :)

Celticrsmith
Hyper Poster
Posts: 1005
Joined: Fri Jul 21, 2017 5:33 pm
Engine size/power: 1.8 20V Turbo

Re: Whitey's White Caddy 4

Post by Celticrsmith » Thu Oct 12, 2017 3:07 am

Looking good mate. Looks like you've fit this one under control. Hats off to ya for going with the Touran carpet 8)

User avatar
Whitey
Twin Turbo poster
Posts: 461
Joined: Wed May 31, 2017 9:43 am
Engine size/power: 2.0 CR TDI (108bhp)
Location: North West
Contact:

Re: Whitey's White Caddy 4

Post by Whitey » Thu Oct 12, 2017 3:07 am

The S3 seats I got are heated so be rude not to use them as intended. Got in touch with Stan The Man on here to literally hook me up with some heated seat looms. Whilst he was at it I thought I may as well get looms for everything else! So here they are heated seat loom, audi seat adapters, puddle light loom, footwell front and rear and RVC loom - very nice tidy work from Stan - more than oem - thank you sir :)


User avatar
Whitey
Twin Turbo poster
Posts: 461
Joined: Wed May 31, 2017 9:43 am
Engine size/power: 2.0 CR TDI (108bhp)
Location: North West
Contact:

Re: Whitey's White Caddy 4

Post by Whitey » Thu Oct 12, 2017 3:12 am

Thanks Celticrsmith :) In all honesty it's been a big waiting game. Every time I needed to do something I needed or had to get something else! I got the Caddy end of May this year, its just been sat there... in bits. Only sorted the insurance out beginning of this month so barely driven it since owning it. Love it mind you :)

User avatar
Whitey
Twin Turbo poster
Posts: 461
Joined: Wed May 31, 2017 9:43 am
Engine size/power: 2.0 CR TDI (108bhp)
Location: North West
Contact:

Re: Whitey's White Caddy 4

Post by Whitey » Thu Oct 12, 2017 3:16 am

Stan's looms being fitted with the help of my mate James. Spot the essentials.... a family pack of zip ties and of course... beer ;)

Not sure if swearing is tolerated on the forum but getting the RVC loom through here is all the swear words... ever... times 10 :twisted:

Just ran the RVC main lead under the main grommet, not sure if this is ok or not? Please let me know if there's a better way!

User avatar
Whitey
Twin Turbo poster
Posts: 461
Joined: Wed May 31, 2017 9:43 am
Engine size/power: 2.0 CR TDI (108bhp)
Location: North West
Contact:

Re: Whitey's White Caddy 4

Post by Whitey » Thu Oct 12, 2017 3:46 am

All happening, all at once! Looms positioned, carpets in, pedals on, MFSW in (without correct module / slipring for now!)

New Head Unit and Heater Control (with heated seats function)

User avatar
Whitey
Twin Turbo poster
Posts: 461
Joined: Wed May 31, 2017 9:43 am
Engine size/power: 2.0 CR TDI (108bhp)
Location: North West
Contact:

Re: Whitey's White Caddy 4

Post by Whitey » Thu Oct 12, 2017 4:09 am

Touran centre console in. Didn't think the Anthracite colour was much different to the titan black but as you can see from the pics.... it's is! Sadly this would do my head in over time so thought best to take it back out and at least try to do something to correct it. I found some stuff called 'Forever Black', mainly a treatment for faded black bumpers. Its basically a black dye paint. Checked out some youtube vids of it being applied and it's really simple to do. Applied with a little foam applicator, not messy and for me one coat did the job! The colour match from anthracite to titan black is perfect. Did notice when using it though is it doesn't like smooth surfaces so stick to textured stuff :)

Last edited by Whitey on Thu Oct 12, 2017 4:31 am, edited 1 time in total.

User avatar
Whitey
Twin Turbo poster
Posts: 461
Joined: Wed May 31, 2017 9:43 am
Engine size/power: 2.0 CR TDI (108bhp)
Location: North West
Contact:

Re: Whitey's White Caddy 4

Post by Whitey » Thu Oct 12, 2017 4:24 am

At present waiting on my handbrake, armrest and gear gaiter to be retrimmed in audi nappa leather (with white stitch). Once these are back the centre console can go back in and i think the front interior is pretty much done. I think the 2 final finishing touches would be the caddy life dash trim and the satin chrome door handles. Unfortunately the satin door handles only come with a new door card priced at about £115 + vat each :shock: (may do a vinyl wrap on these instead!). The caddy life dash trim and vents are about £200, not cheap but definitely more feasible and does look amazing...

A few other purchases....

Bonnet Insulation Pad

Engine Cover

Mega Van Mats front mats (superb qulaity by the way and a bargain!)

User avatar
Whitey
Twin Turbo poster
Posts: 461
Joined: Wed May 31, 2017 9:43 am
Engine size/power: 2.0 CR TDI (108bhp)
Location: North West
Contact:

Re: Whitey's White Caddy 4

Post by Whitey » Thu Oct 12, 2017 4:40 am

19" Alloys arrived today (still boxed but will upload some pics tomorrow!). Ordering tyres tomorrow. Awaiting my Gaz rear shocks (due in 2 weeks) and my BC front coilovers any day now. Darkside rear kit is here already. Plan is to fit and test the suspension with the 19"s and then put the original 15"s on until the weather is nicer...

Few other quick mod bits....

Fitted front footwell leds and USB to inner stowage compartment :)
